Thermo-adhesive Film

High Gain’s thermos-adhesive film is composed of CO-PA. PA thermos-adhesive film is a kind of solid glue, which is sticky on both sides after being heated by heating equipment. It can be used as a medium between composite materials to fix the shape and form.
অনুসন্ধান পাঠান
পণ্য পরিচিতি

product-900-350



Background:



High Gain’s thermos-adhesive film is composed of CO-PA. PA thermos-adhesive film is a kind of solid glue, which is sticky on both sides after being heated by heating equipment. It can be used as a medium between composite materials to fix the shape and form.

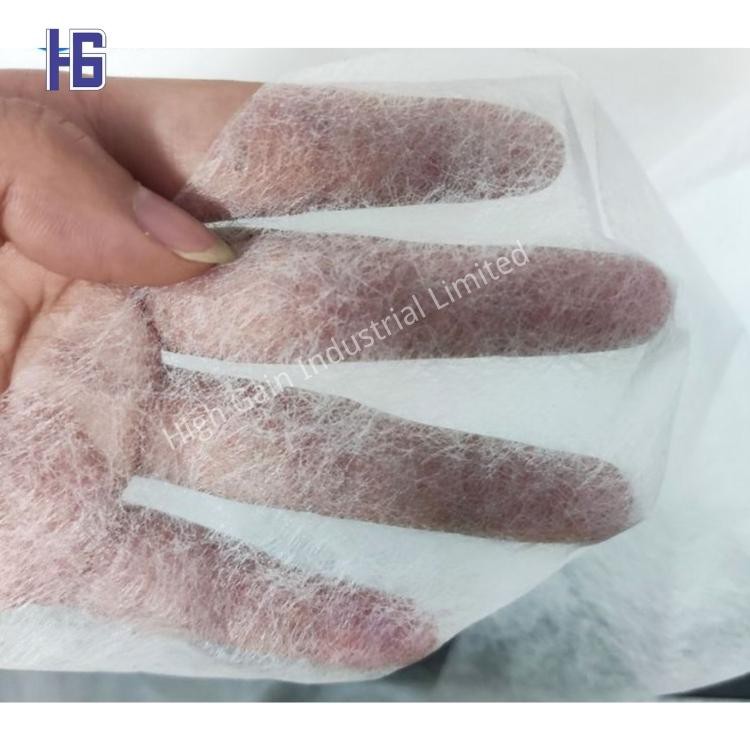

The chemical composition of the raw material is copolyamide, which does not have a viscosity when working at room temperature. Its shape is usually translucent film. The material itself uses the spider web fiber cell structure, and the hand feeling after fitting affects them better.



Specification:



product-900-350



Melting range (oC)

115-125 oC

DSC (oC)

120-130 oC

Density(g/cm³)

1.2

Specification

Min weight

8gsm

Tolerance ±1gsm

Max weight

100gsm

Tolerance ±5gsm

Max width

3000mm

Tolerance ±2cm

Length per roll

500m

Tolerance ±1m

Binding condition (for reference only)

Temperature oC

140-150

Pressure (Kg/cm²)

2.0-3.0

Time (S)

10-15



Reasons for Choosing PA Thermo-adhesive Film:



PA product characteristics:

i. Good air permeability and no elasticity.

ii. It has excellent dry cleaning resistance and can also be washed.

iii. It is not easy to yellowing and aging, and its molecular structure is stable.

iv. Good adhesion to composites fabrics.



product-900-350



Applications:



i. Composite fabrics with film for cosmetic usage.

ii. Application of adhesives in clothing industry (clothes and trousers)

iii. Bonding performance application of car interior (leather, seat and ceiling)

iv. Bonding application of home textile indoor fabrics (textiles)

v. Fabric (leather, textile) bonding performance application in the luggage design industry

vi. Application of adhesives in shoe materials (leather, textile) industry



product-900-350
